Height-adjustable glass barrier

Height-adjustable glass barrier

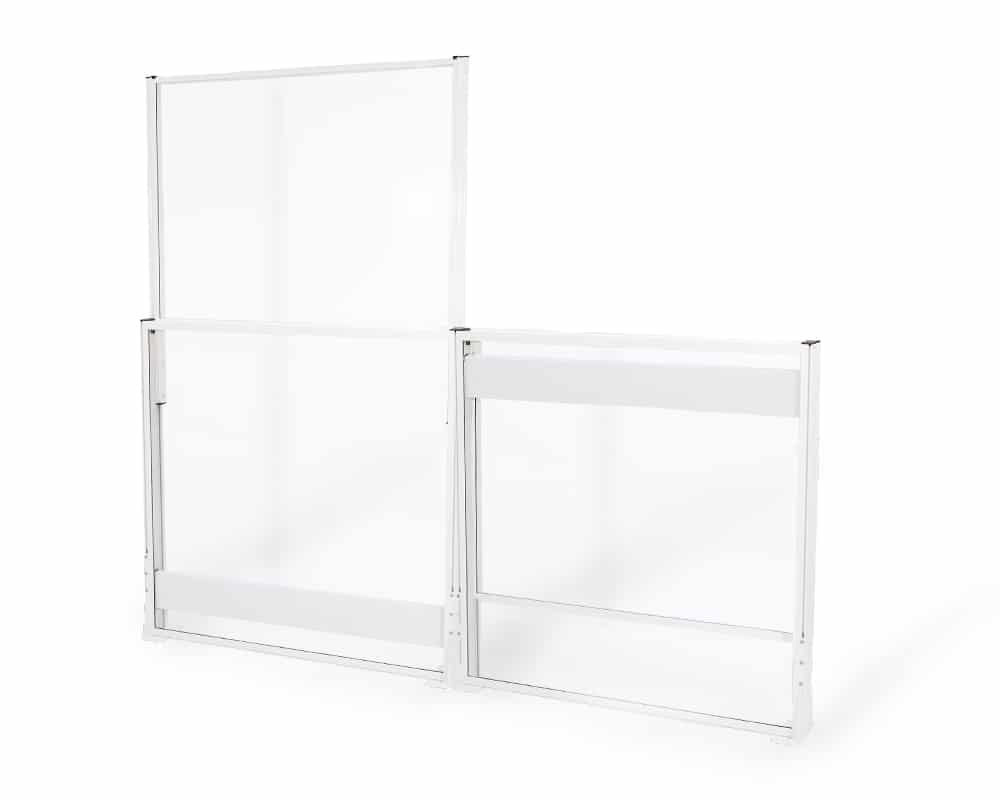

Alu Flex is a versatile and robust glass barrier with a protective top panel which can be raised and lowered as required. A chill wind blowing? Simply pull up the glass section to create an effective windbreak so you can sit in comfort. A warmer day? Lower the glass section and enjoy the summer breeze.

Functional & stylish – with options

With our height-adjustable glass barrier, you can defy the weather gods and enjoy your patio for longer. Our attractive design helps to frame the outdoor area and blends in seamlessly with your garden. You can even add an awning to create a conservatory.

Selected options:

  • The aluminum posts are available in the standard colours of untreated (aluminum), white and black, but you can also choose which RAL colour suits you.
  • Height: Lowered position/raised position: 800/1300 mm, 900/1500 mm, 1000/1700 mm, 1100/1900 * mm or 1200/2100 * mm (max. Width 2000 mm).
  • Width: Max 2200 mm **

* For installation of more than 2m above ground level, the height of the lowered position of the railing must be at least 1100 mm.
** Please note that the maximum width is subject to the prevailing wind conditions and desired installation height. This applies to fixed barriers and standard height-adjustable sections.

You make your selections in our design tool.

Adjustable height – easy

The inbuilt barrier counterweight offers the advantage of smooth and easy control and requires no force to change the height. Even a child can change the barrier’s position. This also enables precise control of the barrier’s height, to suit your needs and the conditions.

Easy to customize and order through our design tool

With our easy to use design and ordering tool, simply add the dimensions and tailor the design to meet your taste or needs. Your choices will be displayed as both a 3D image and drawing, so that you can feel completely confident about how it will look before you order. If you save your design, you can log in again and adjust the size and features at any time. You can also have the quote sent to your email address, to give you time to reflect on your decision.

Beställ Alu Modern online - via dator, surfplatta eller mobil

Easy to assemble

We have taken the time and care to make the barrier easy to assemble. All screws and other fastenings are included. The barrier comes with a handy measurement template to position the supports in accordance with the size ordered.

Your order also includes an instructional video of the installation. The videos are specially designed for your barrier and takes you step by step through the assembly.

Technical information

Technical details

Width

Min. 500 mm
Max. 2,200 mm
Please note that the maximum width can be affected by the prevailing conditions such as wind load and installation height.

Height

Standard heights:
• 800/1300 mm (lowered position/raised position)
• 900/1500 mm
• 1000/1700 mm
• 1100/1900* mm
• 1200/2100* mm (max. width 2,000 mm))

Moveable glass

As standard, the movable glass sections are 6 mm laminated safety glass and the fixed glass sections are 6 mm laminated safety glass.

Aluminum rail

As standard, the barrier comes with an aluminum rail that protects the horizontal edges of the glass.

Sanded glass edges

When designing your railing, you can choose to have a ground glass finish along the horizontal edges of the glass.

Glass choice

Clear glass
Opal glass has a whitish film between the panes, for extra privacy. Opal is also known as 'frosted glass'.

Clamp support

When using a clamp support, the barrier must be installed 25 mm from the edge of a wooden base and 50 mm from the edge of a concrete base. Both clamp screw holes must be used.

Balcony support

A balcony support is installed close to the edge of the balcony base. The screws are fastened through the lower holes of the balcony support and through the top hole that is furthest from the edge of the base.

Screw for wood attachment

If you choose attachment to a wooden substrate, screws are included for this purpose. The screw is made of hardened steel and, in outdoor environments, also surface-treated with Corrseal - Corrosivity class C4. The screw is equipped with a milling groove along the stem and one on the tip. This means a very low screwing torque in harder wooden materials and minimizes cracking. The screw is 80 mm long with a torx grip, bits are of course included in your order. When fixing in materials other than wood or concrete, we recommend that you contact your local hardware store.

Screw for concrete attachment

If you choose attachment to a concrete substrate, screws are included for this purpose. The screw is made of hardened steel and, in outdoor environments, also surface-treated with Corrseal - Corrosivity class C4. The concrete screw is 90 mm long and is screwed directly into the pre-drilled hole without a plug using a 10 mm key, which is of course included in your order. Approved for base material cracked concrete, uncracked concrete & perforated decks. Also suitable for solid brick, hollow brick, solid mexite brick and natural stone. When fixing in materials other than wood or concrete, we recommend that you contact your local hardware store.

Everything is included with your order

The package you receive from us includes everything you need to assemble your barriers. This includes posts, glass and handrails, as well as all screws, drill bits and special tools. All you need is a screwdriver, wrench, ruler and spirit level.

Assembly videos and instructions

Our assembly videos help you by showing specific steps of the installation process. Our assembly tips and videos are adapted to each order. They're not general descriptions, rather, they directly concern your particular order.

Glass

Use a soft cloth to clean glass surfaces with window or mirror cleaning fluid. For more difficult stains, rubbing alcohol can be used. Afterwards, clean with window and mirror cleaning fluid for a second time. Do not use abrasive agents on glass.

When you're building your railing, the usage class (A+, A, B or C) gives an indication of where it's suitable to use. Classes are based on current building regulations and our own product tests, and take into account your specifications regarding railing height, section width, details, etc. They're our recommendations to help you make the right choice!

Class A+

A+ rated railings meet the Swedish Housing Authority's requirements for railings at a drop height of over 3 metres from floor level to ground level, and are therefore suitable for use in all types of residential environments, as well as public ones such as offices, restaurants and shops. Our A+ rated railings can handle loads of at least 1 kN/m, and those with glass include only safety glass that prevents personal injury in the event of impact.

Class A

A-rated railings meet the Swedish Housing Authority's requirements for railings at a drop height of over 3 metres from floor level to ground level, and are therefore suitable for use in all types of residential environments. Our A-rated railings can handle loads of at least 0.5 kN/m in line load and in cases where the railing has glass. Those with glass include only safety glass that prevents personal injury in the event of impact.

Class B

Class B railings are suitable for use in environments in which the level difference from floor to ground is 0.5-3 metres. Our B-class railings can withstand loads of at least 0.5 kN/m. Those with glass include only safety glass that prevents personal injury in the event of impact.

Class C

C-rated railings are suitable for use at ground level. Those with glass include only safety glass that prevents personal injury in the event of impact.
